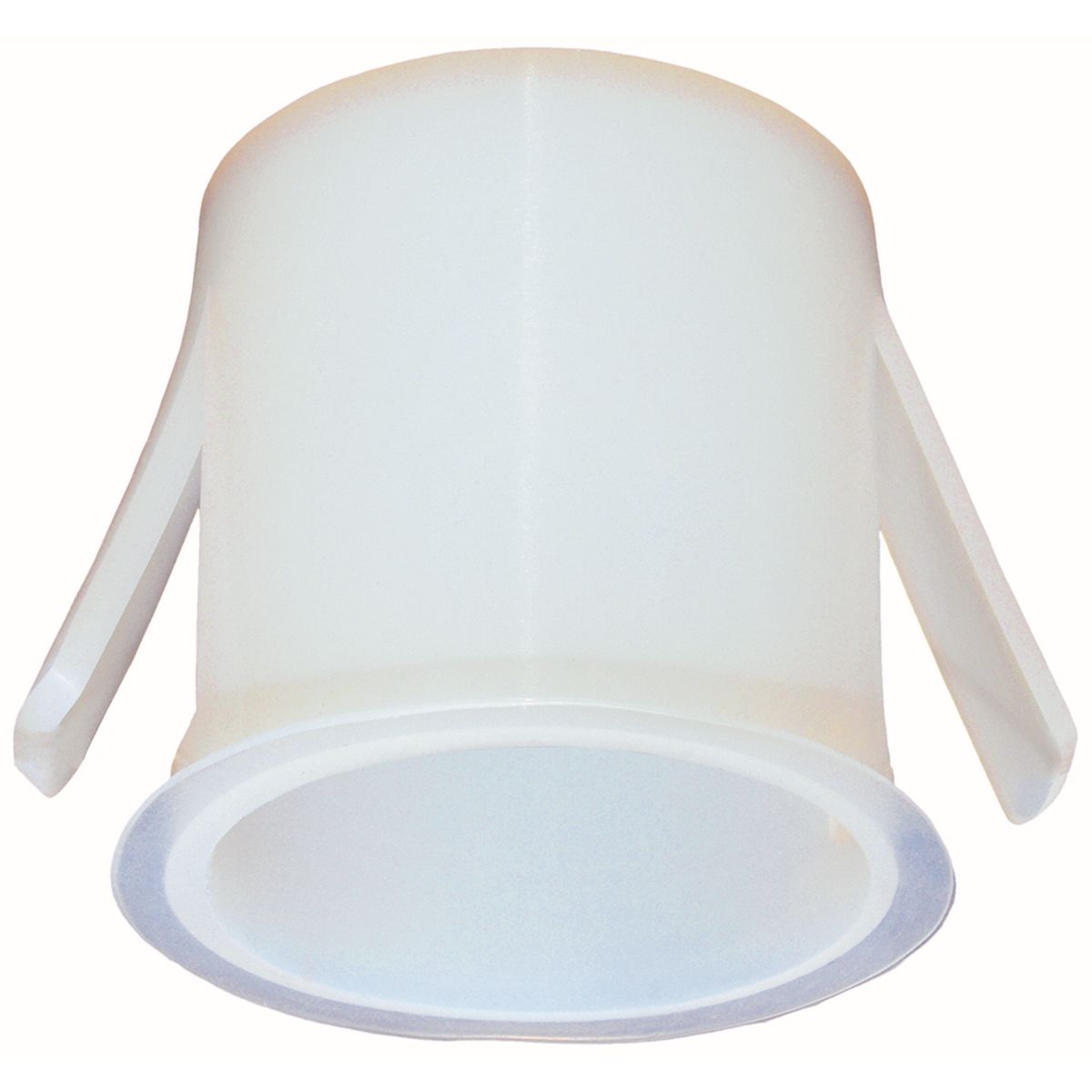

Silicone protective cap max. 35 W Ø 75 mm transparent
Description:

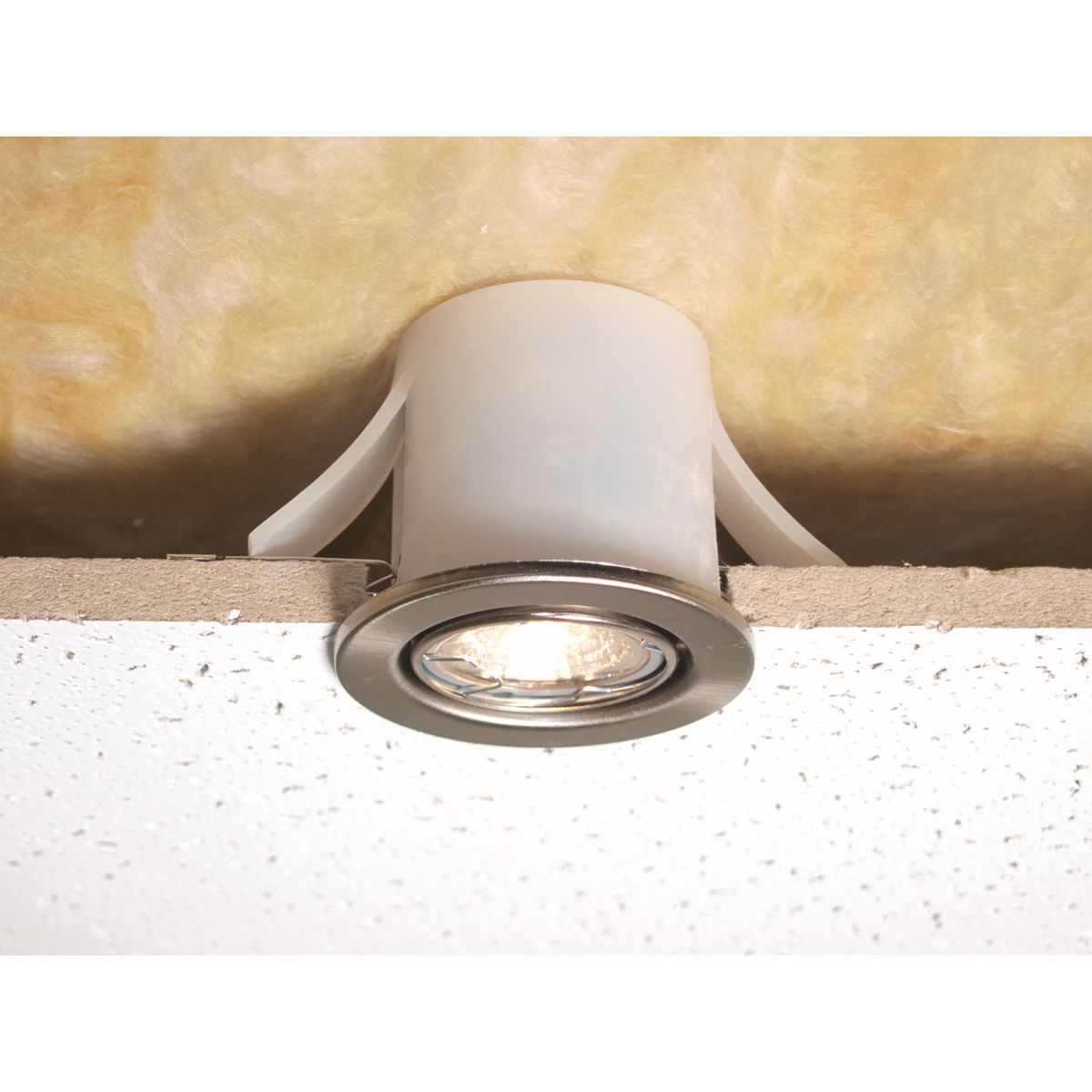

Silicone protective cap Series 1005 for halogen recessed spotlights + LED spotlights, swivel-mounted, simple and retrofit installation, protects against overheating, active fire protection thanks to closed rear panel, ceiling cut-out: Ø 75 mm, inner diameter Ø 70 mm, installation depth 71 mm, luminaire installation height max. 68 mm, side flaps 50 mm long, 26 mm wide for spring clips, edge: 5 mm, thickness 0.8-1.0 mm, do not use COOL BEAM light sources
Item no.: K227253
E-number: 920000239
EAN: 7611664198595
Additional information
| Ceiling cut-out | |
|---|---|
| Diameter (inside) | |
| Installation depth | |
| Luminaire installation height | |
| Light source |
Downloads, media & accessories
Related products
Silicone protective cap max. 35 W Ø 68 mm transparent
Ceiling cut-out: 68 mm
Diameter (inside): 63 mm
Item no.: K227252
E-number: 920000229
