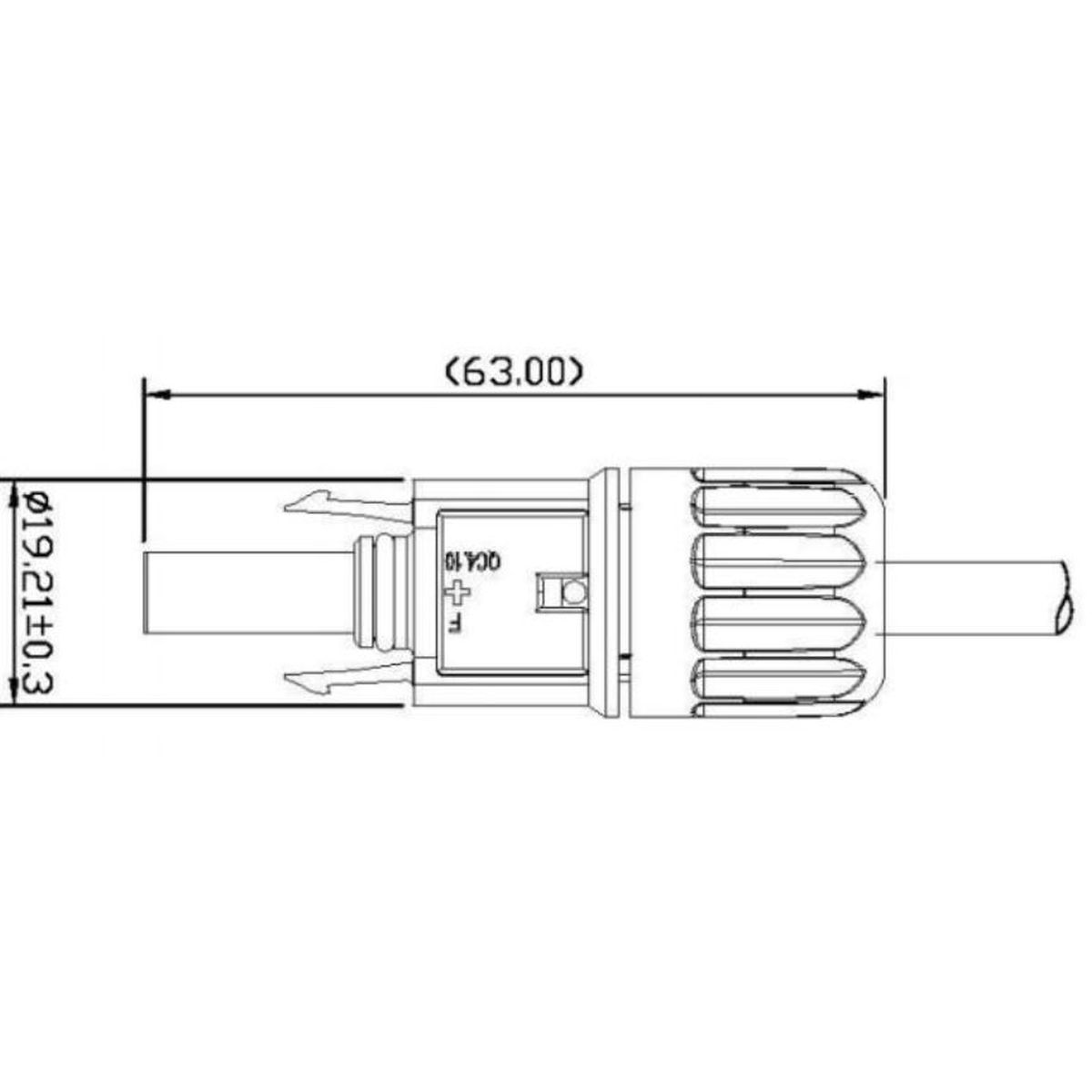

PV coupling socket 6 mm², cable gland 6–6.6 mm, black
Description:
MC4-compatible jack. Fast and reliable connection of solar cables to the photovoltaic system. For solar cables 6 mm² (AWG 10), cable gland range 6–6.6 mm, rated voltage IEC 1500 V, UL 1500 V, rated current 36 A (2.5 mm²) and 41 A (4 mm²), Snap-in locking system, temperature range -40 °C – +85 °C, contact resistance < 0.5 mΩ, overvoltage category II, flammability class UL 94, TÜV and UL certified, protection class IP68
Item no.: K227171
E-number: 969600049
EAN: 7611664197390
Additional information
| Type | |
|---|---|
| Conductor cross-section | |
| Cable gland area | |
| Packaging unit |
