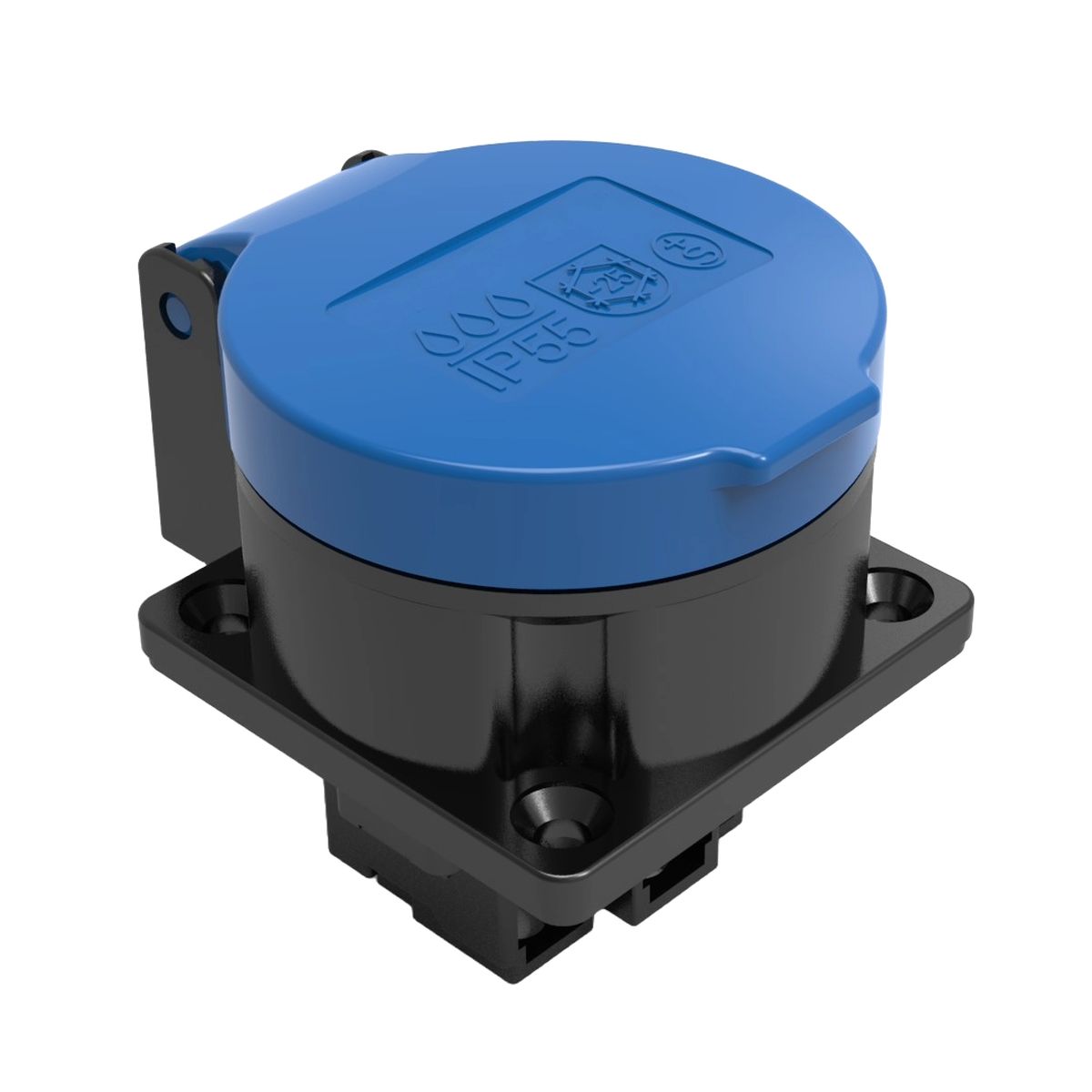

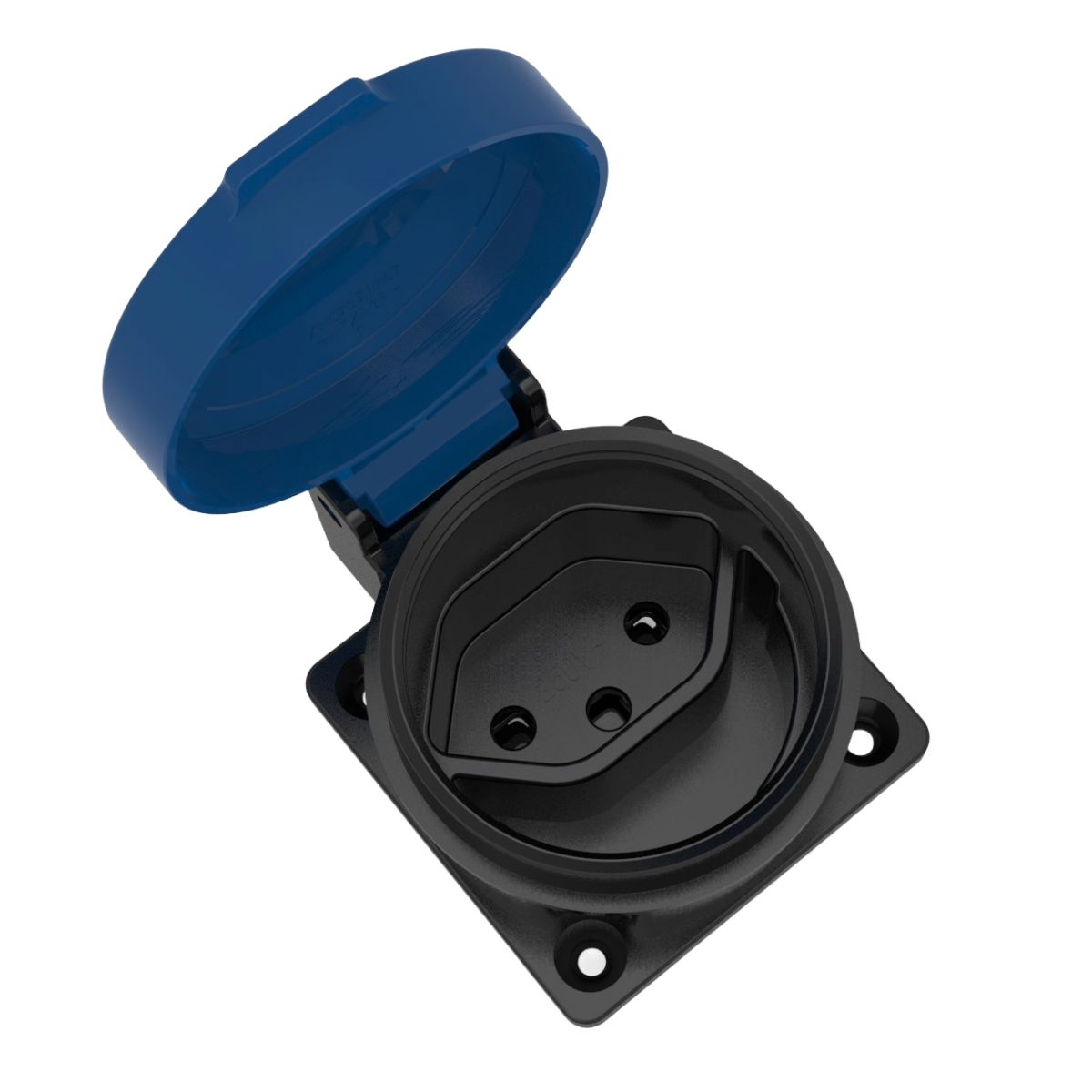

EB socket outlet T13 IP55 10 A 230 VAC IK08 black/blue S+, fixed seal
Description:
Type 13 flush-mounted outlet with hinged cover, impact-resistant IK08, L+N+PE, 10 A, max. 2300 W, 230 V AC 50 Hz, with screw terminals, for Ø 43 mm hole, mounting hole spacing 38×38 mm, width (W) 50 mm × height (H) 61.5 mm × depth (D) 58 mm, Connection cable cross-section 0.75 – 1.50 mm², includes permanently attached gasket, color-coded for rated voltage, material PC+ABS+PA6, without child protection, housing black RAL9005, Hinged cover: blue RAL5002, IP55, weight 0.057 kg, ambient temperature -25°C to +45°C, S+
Item no.: K227275
E-number: 663001009
EAN: 7611664199004
Additional information
| Color | |
|---|---|
| design | |
| power outlet | |
| Clamps | |
| Nominal voltage | |
| Protection class |
