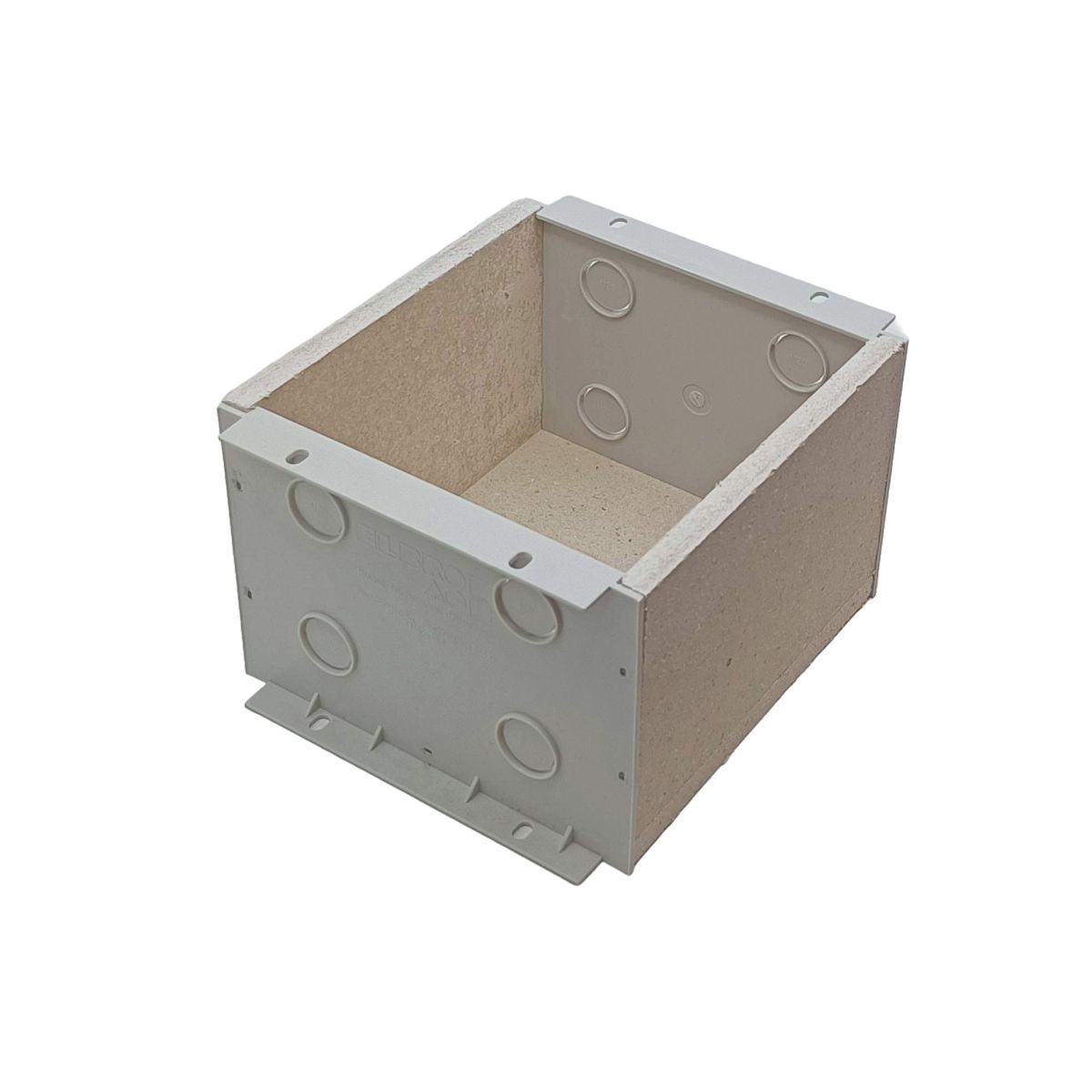

ELBRO fire stop box with 8 x M20 pipe entries, external dimensions 150 × 150 × 110 mm
Description:
Fire Stop Box • Recessed housing for hollow ceilings with 8 x M20 pipe entries • Construction material: FERMACELL gypsum fiber boards with approval certificate from the Association of Cantonal Fire Insurers: VKF approval no. 11158 • Rectangular • Material thickness: 10 mm • Suitable for use in damp rooms • Fire protection EI30 • Side panels halogen-free in accordance with IEC 60754-1, flammability test UL 94 Class V-0, GDP at 850 °C • Heat-resistant up to 220 °C • Pipe entries on both sides, 4 x M20 each • External dimensions 150×150×110 mm • Internal dimensions 130×130×100 mm
Certificate of recognition from the Association of Cantonal Fire Insurers
Fire protection EI30
FERMACELL gypsum fiberboards
Item no.: K226807
E-number: 920849410
EAN: 7611664190810
Additional information
| External dimensions | |
|---|---|
| Dimensions inside | |
| Material thickness | |
| Fire resistance |
