Cable bridge, floor trunking, length 2 m, height 18 mm, width 215 mm, cable guide Ø 18 mm, black/yellow
Description:

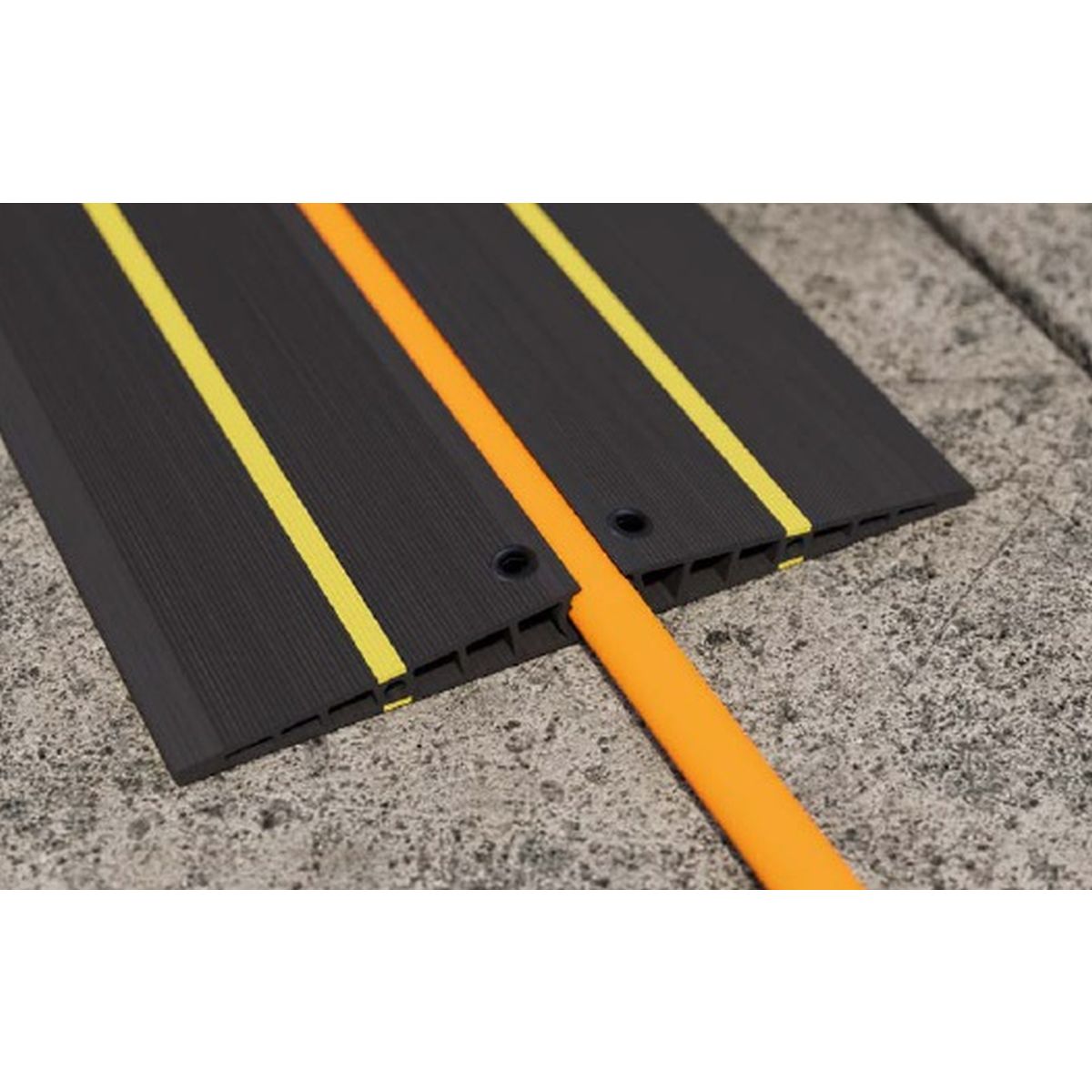

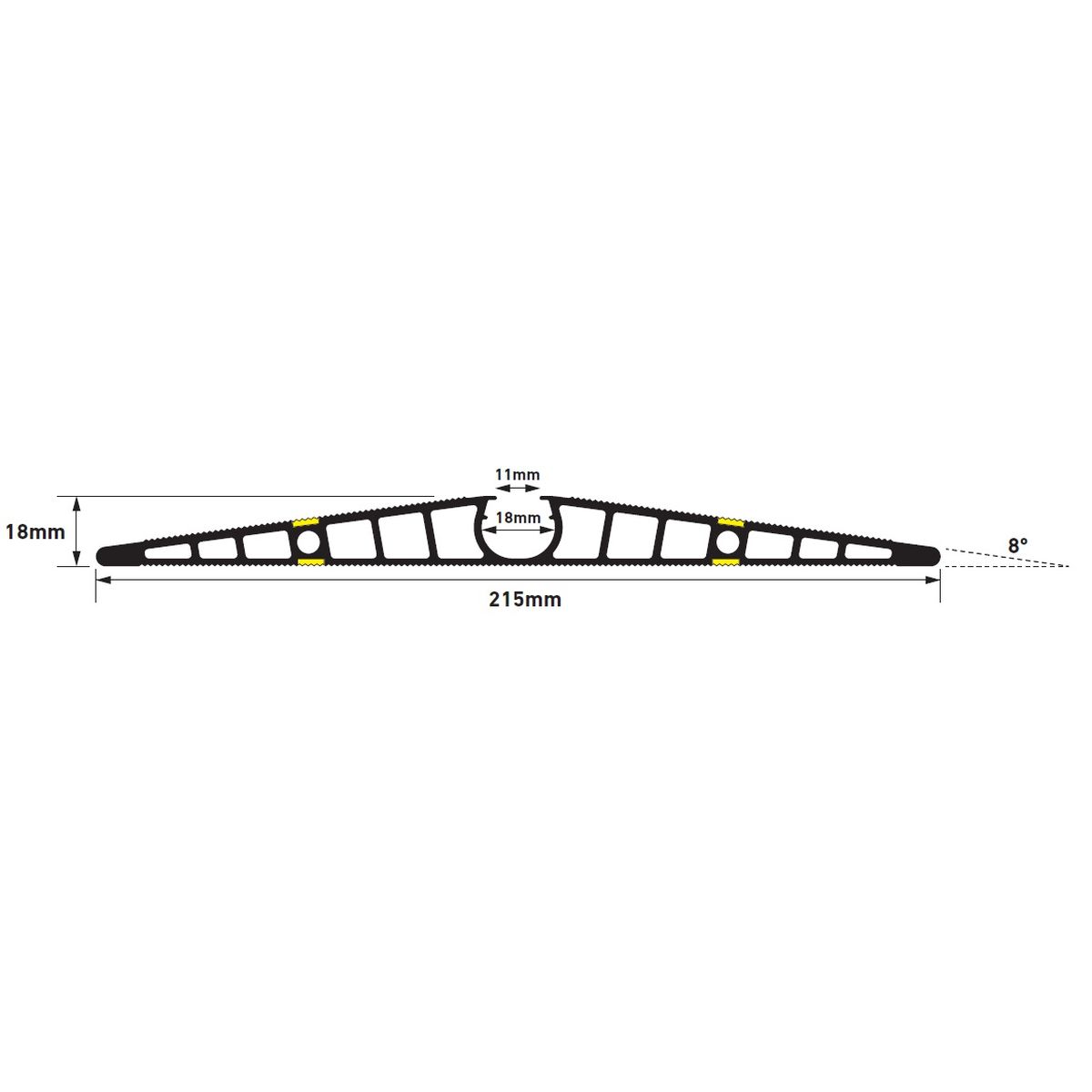

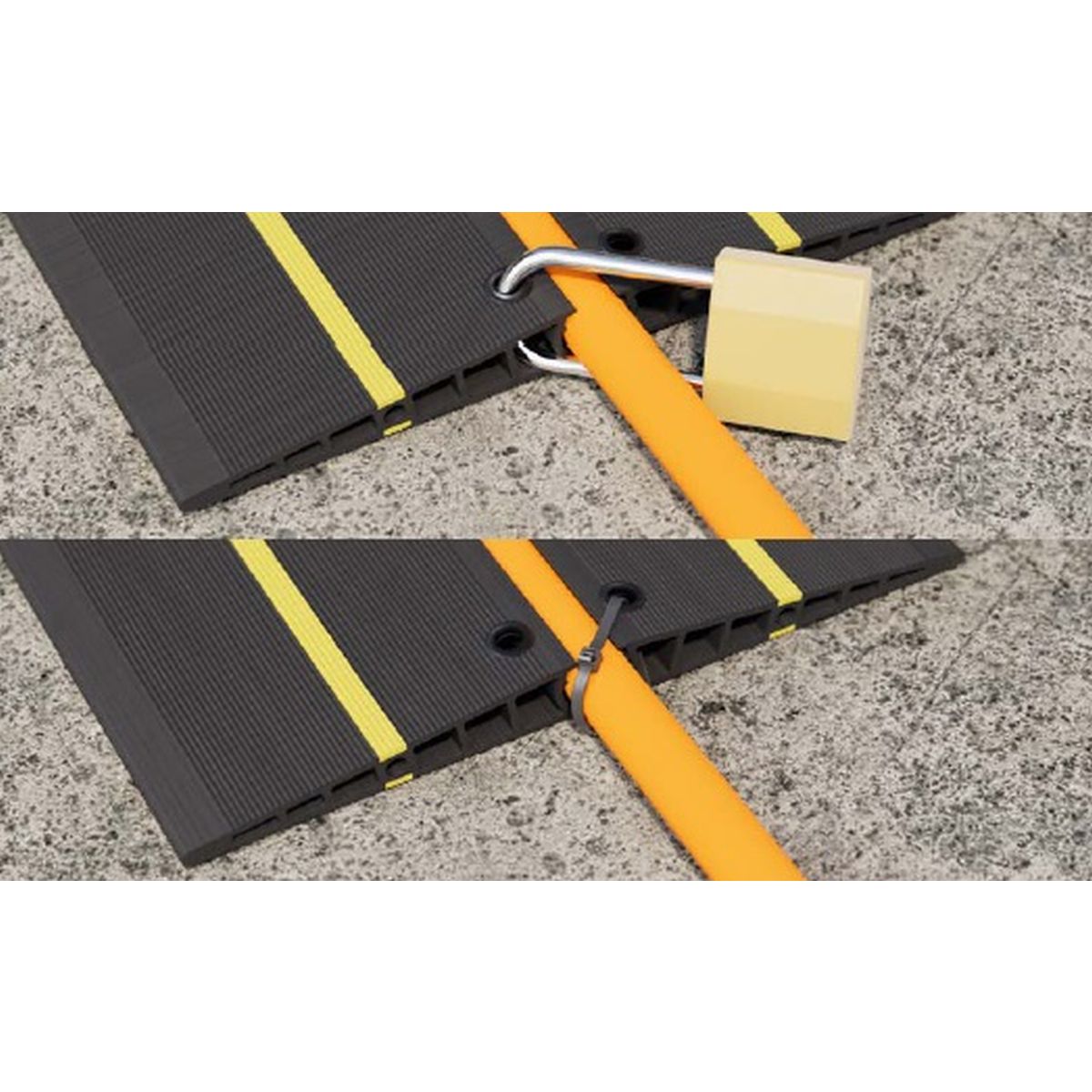

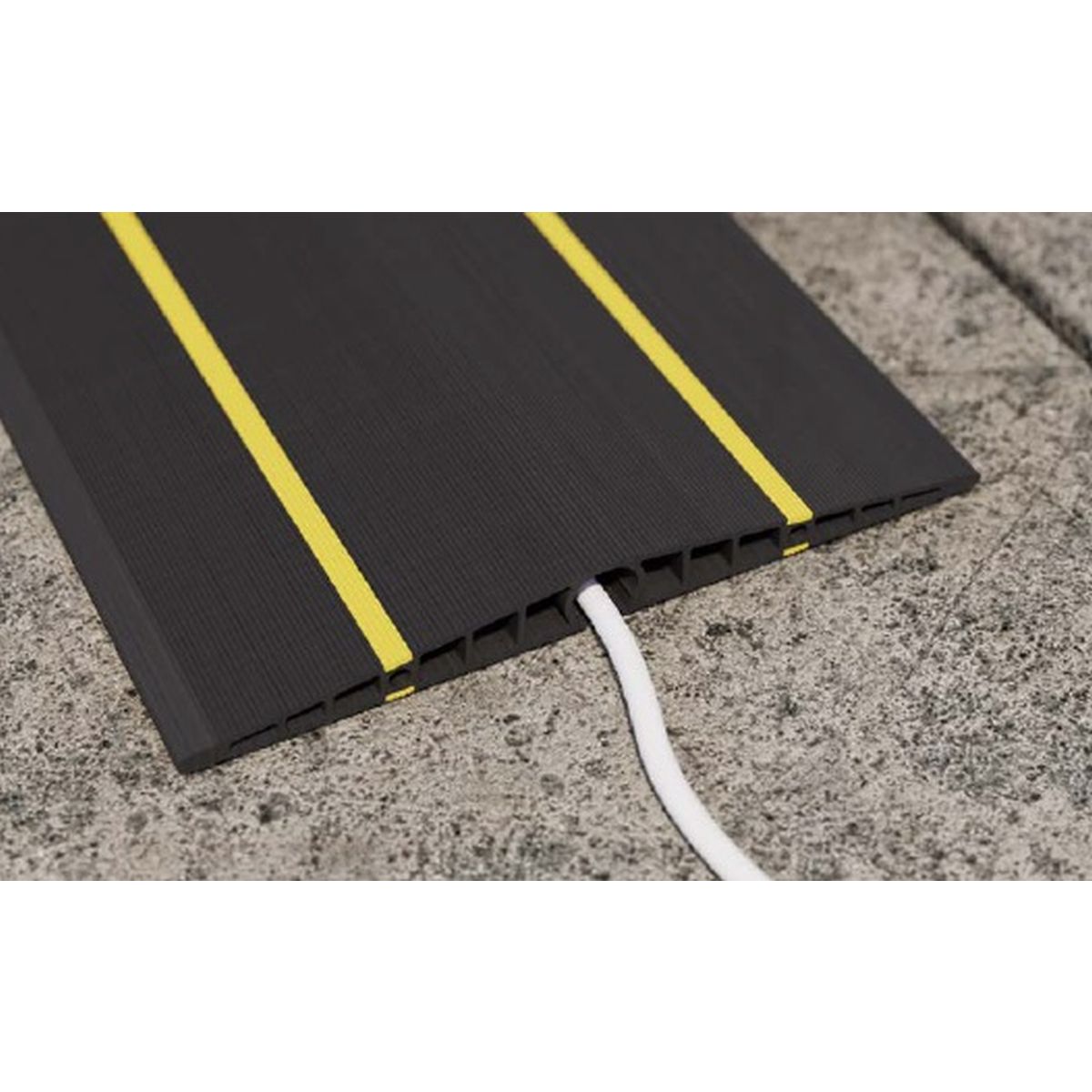

Cable bridge, floor channel. Ideal as an accessory for charging infrastructure for electric vehicles. Black with yellow warning stripes for increased visibility. External dimensions width 215 mm x height 18 mm, length 2 m. Very flat incline angle of 8°. Internal dimensions Ø 18 mm. Easy cable insertion from above; cable can be conveniently inserted or removed at any point while standing. Trip protection. Withstands heavy pedestrian traffic. Permanent colors, do not fade. Easy to install, lay and cut to size. Flexible material (PVC), suitable for uneven floors. Temperature range -30 °C to +60 °C. Cut to size using a knife. Ribbed underside. Reyclebar. Baying possible. Inserted cable can be secured with a padlock. Can also be laid upside down on thinner cables to create a closed surface.
Ideal as an accessory for charging infrastructure for electric vehicles
Safe installation of the charging cable

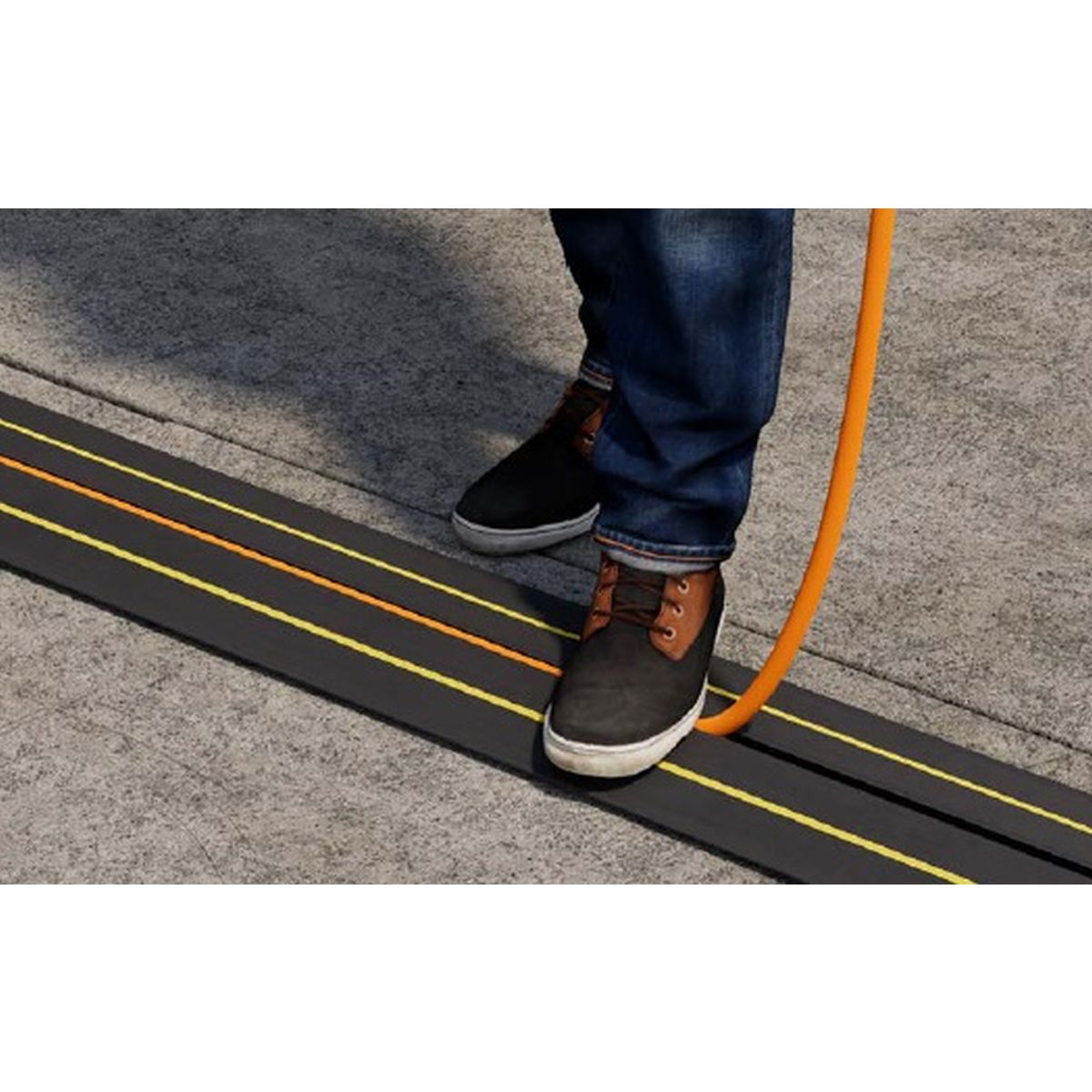

Robust trip protection, highly resilient
Item no.: K227296
E-number: 127601418
EAN: 7611664199189
