Testy 3000 rotary field direction indicator

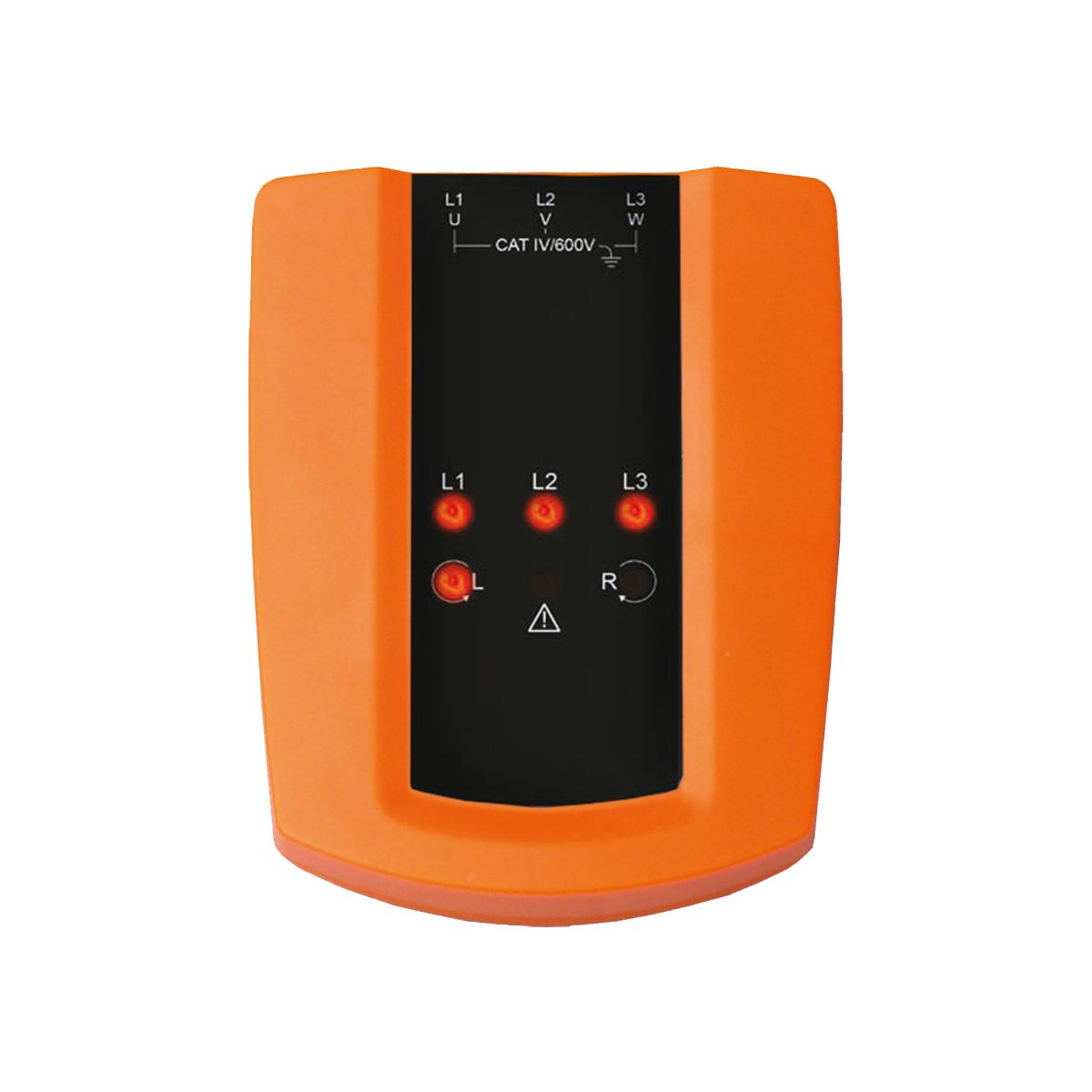

The TESTY 3000 is a rugged rotating-field direction indicator designed for the quick and reliable determination of phase sequence in three-phase power systems. The clear visual display, featuring six LEDs, enables reliable detection of the rotating-field direction and supports installation, maintenance, and service work.
The device operates in a voltage range of 100 to 700 V AC between phases or up to 400 V between phase and neutral and features a low current consumption of less than 3.5 mA. The impact- and break-resistant ABS plastic housing with a slip-resistant surface ensures high durability and safe handling even under demanding operating conditions.
The TESTY 3000 complies with overvoltage category CAT IV 600 V, meets protection class IP40 and pollution degree 2, and has been tested in accordance with the standards EN 61010-1, EN 61557-7, and EN 61010-031.

Technical Specifications:
Optical rotating field indicator via 6 LEDs
Current consumption: < 3.5 mA Voltage range (phase–neutral): up to 400 V AC Voltage range (phase–phase): 100–700 V AC Measurement category: CAT IV 600 V Protection class: IP40 Degree of pollution: 2 Impact- and shatter-resistant ABS housing with non-slip coating Dimensions: 89 × 70 × 25 mm Weight: 120 g Color: Orange/Black
