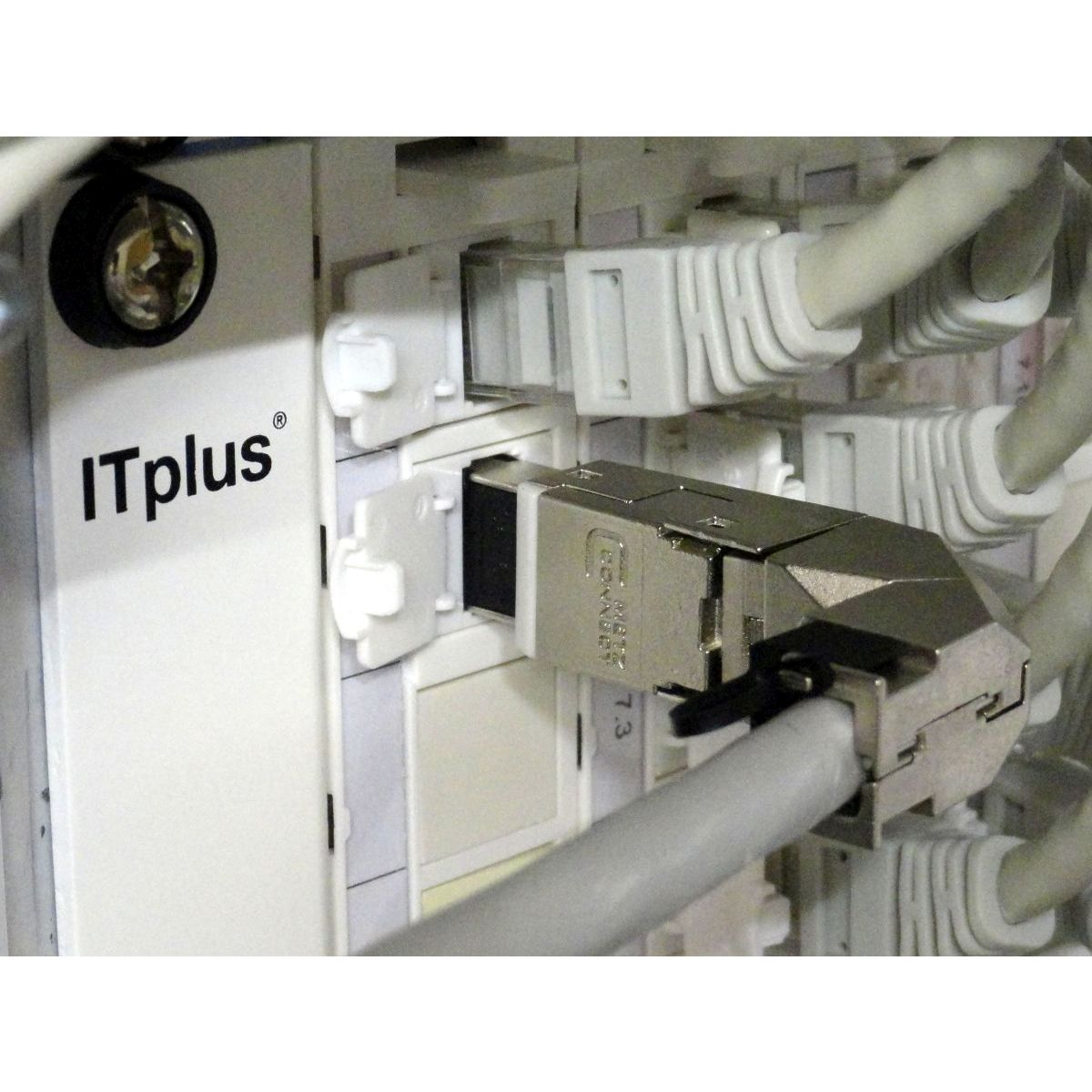

RJ45 plug IP20 Cat6A AWG 22/1-27/7, STP, 360°, field-wireable
Description:
Field-terminatable RJ45 connector,Cat6A/Class EA, fully shielded and multiport-capable, 360° cable entry, connectable without special tools, reconnectable, wire termination for stranded conductors AWG 27/7–22/7, wire termination for solid conductors AWG 26/1–22/1, Cat.6A per ISO/IEC 11801 Ed.2.2:2011-06, Class EA per ISO/IEC 11801 Ed.2.2:2011-06, 10 Gbit 802.3, industrial-grade die-cast zinc housing, cable jacket diameter from 5.5 to 10.5 mm
Cable feed freely selectable 360
Multi-port capable
Item no.: K224597
E-number: 977801838
EAN: 4250184175964
Additional information
| Shielding | |
|---|---|
| Material | |
| Power over Ethernet | |
| Ports | |
| Class | |
| Wire diameter | |
| Plug face | |
| Category | |
| Frequency | |
| Standard | ISO/IEC 11801 (2), EN 50173-1 (2), IEC 60603-7, TIA/EIA568B.2-10 |
