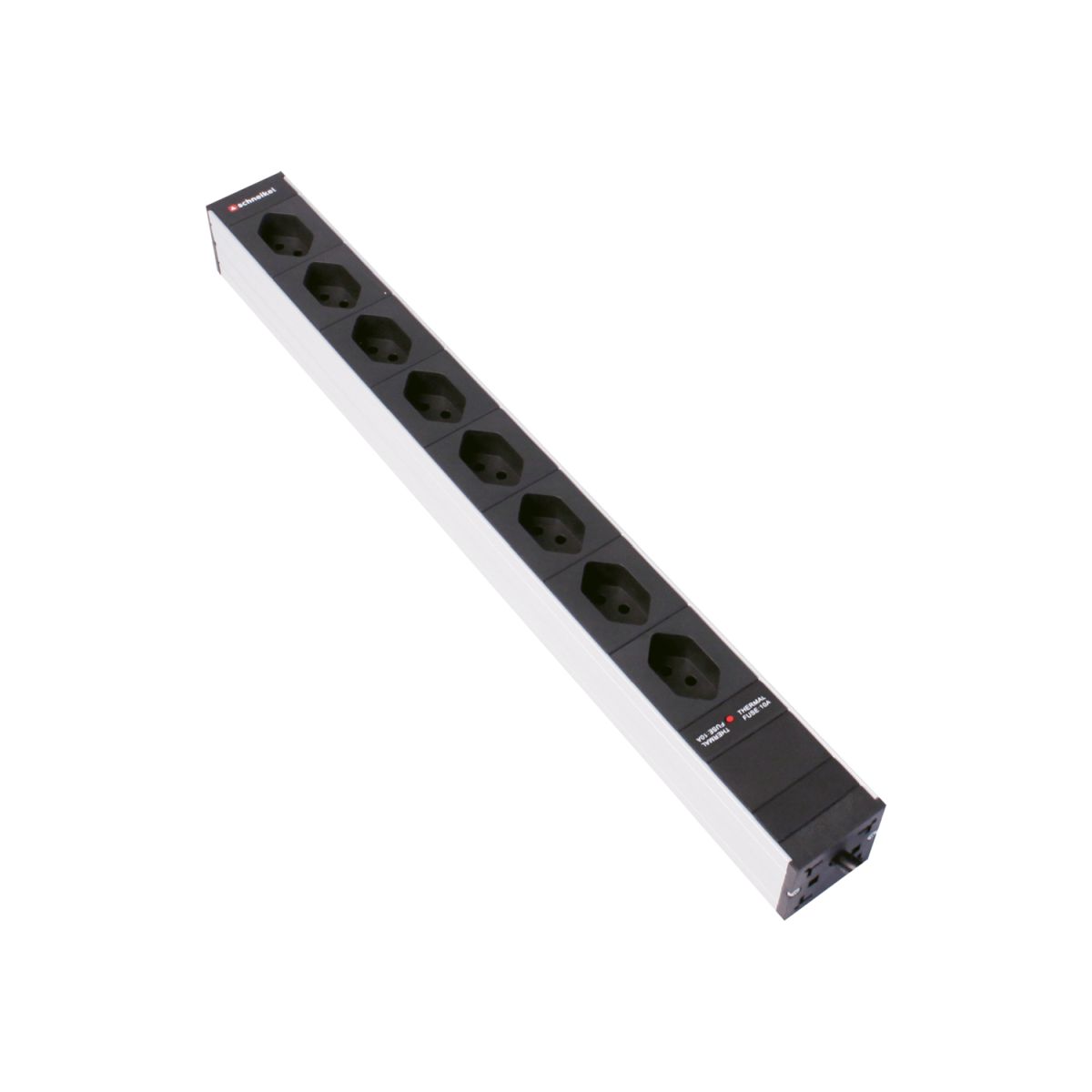

Socket strip 19″ black, 8xT13, 3 x 1.0qmm/L=3m, 250V / 10A, plug T12

Name: 19" Power Strip, Black, 8xT13, 3 x 1.0 sq. mm/L=3 m, 250 V / 10 A, T12 Plug - ELBRO Catalog
SKU: K226531

Socket strip 19" black, 8xT13, 3 x 1.0qmm/L=3m, 250V / 10A, plug T12

Description:

Socket strip 19″, PDU (Power Distribution Unit), 1 U, with protector 10A, with mounting brackets, aluminum / polypropylene housing (impact-resistant), color of inserts: black, 250 V AC, connection cable, TD3×1.0 mm², length 3 m, with plug type 12 black, horizontal socket outlet arrangement, 483×44×47 mm

For use in 19" cabinets

Thermal overload protection

Height 1 U

Item no.: K226531

E-number: 986170427

EAN: 7611664186745

Contact us

Additional information

Color	black
Plug	T12
Sockets	8 x T13
Plug mounting type	Sprayed on
Certificate	SEV according to IEC 60884-1
Safety sign	S+ according to NEV (ESTI)
Thermal overload protection	Yes
Length of the supply line	3 m
Number of cores	3
Cross section	1 mm²
Cables	Td
Partially insulated pins	Yes
Child protection	Without
Design	Horizontal
Protection class	IP20
Rated current	10 A
Tension	230 V

Downloads, media & accessories

Data sheet (en)RoHS and REACH certificate (en)RoHS and REACH certificate (fr)

Accessories

Socket strip 19″ orange, 8xT13, 3 x 1.0qmm/L=3m, 250V / 10A, plug T12

Color: Orange

Plug: T12

Sockets: 8 x T13

Item no.: K226532

E-number: 986170387

EAN: 7611664186752

Socket strip 19″ orange, 8xT23, 3 x 1.5qmm/L=3m, 250V / 16A, plug T12

Color: Orange

Plug: T23

Sockets: 8 x T23

Item no.: K226397

EAN: 7611664184260
